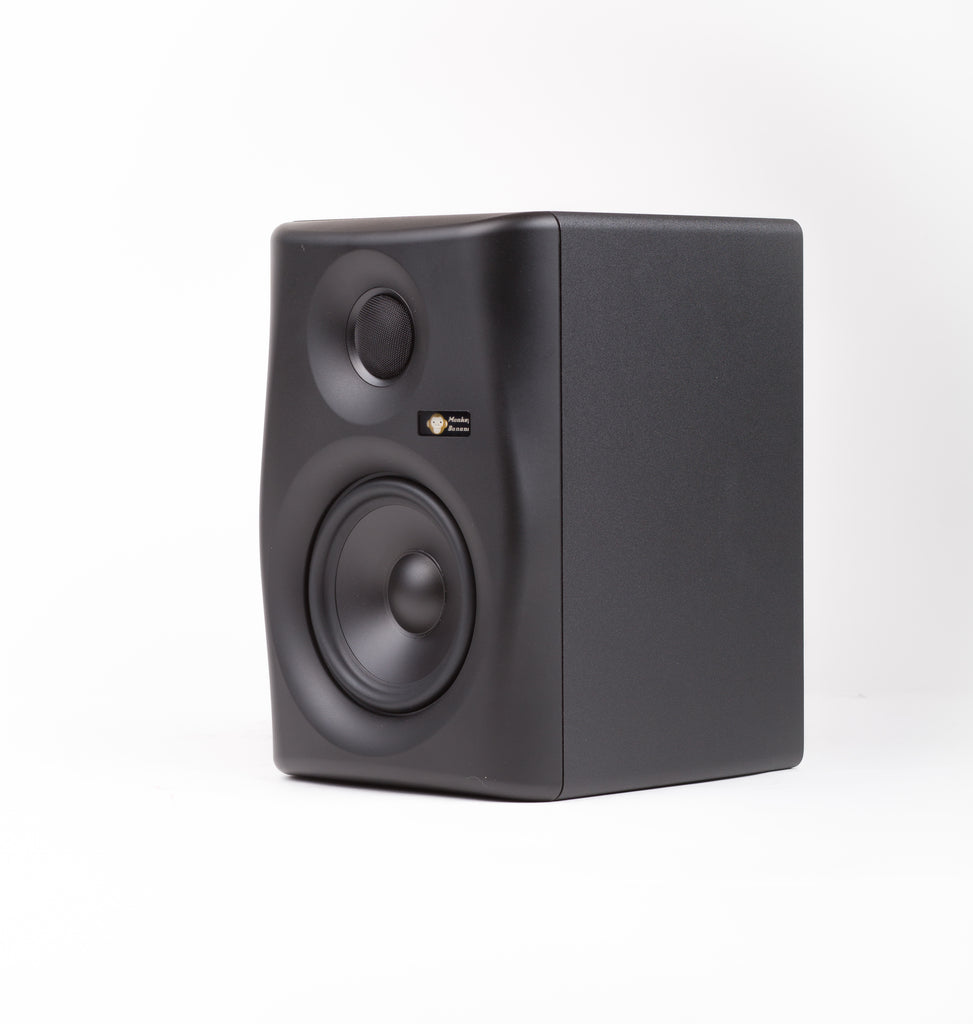

Turbo 5 is an active studio monitor and an ideal solution, when a smaller model is required. The digital bi-amp-driven loudspeaker is great for perfect mixes and mastering in small to medium monitoring environments such as a home studio. Likewise The Turbo 5 is the ideal monitoring solution for professional recording studios.

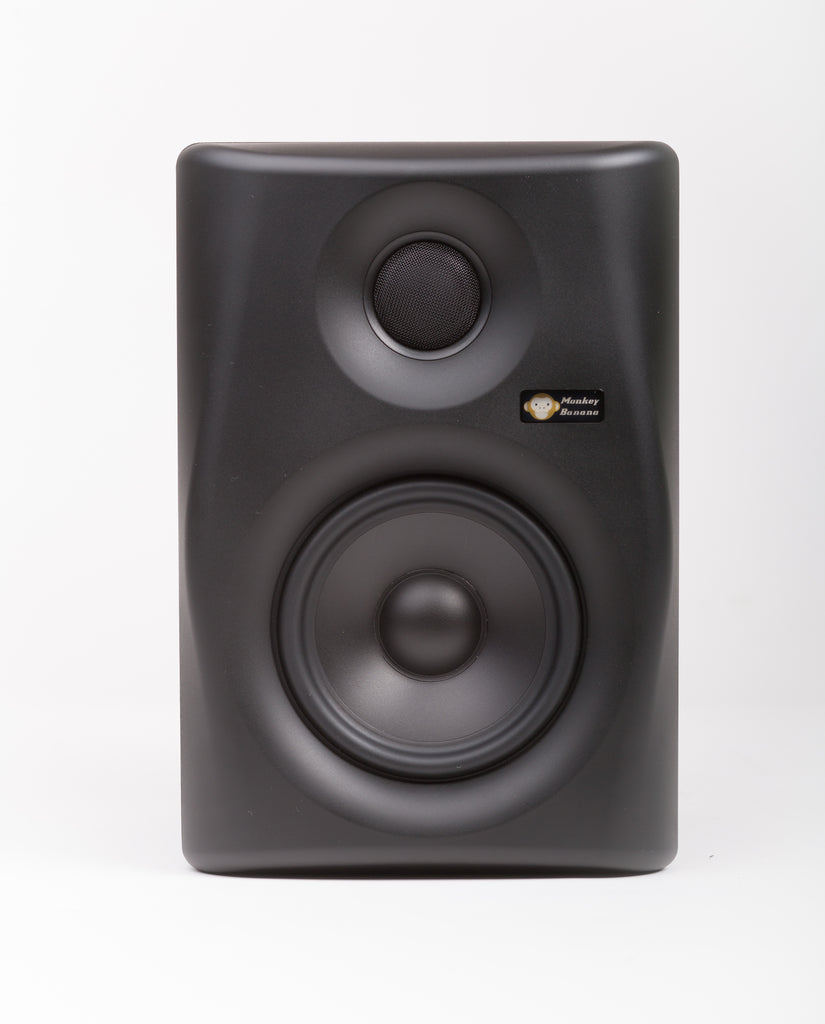

The application fields for near field monitoring with the small Turbo 5 are extremely broad. A 5.25” woofer with a magnetically shielded polypropylene/ceramic membrane is combined with a 1” silk tweeter. The amplification power of the bi-amp module is 50 watts for the low-end frequency range and 30 watts for the high-end frequency range.
Specification
Woofer: |
5 1/4-inch magnetically shielded polypropylene / ceramic membrane |
Tweeter: |
1-inch silk dome tweeter |
Frequency response: |
55Hz - 30kHz |
HF - Level: |
-6dB ~ +6 dB variable at 10kHz |
LF - Level: |
-6dB ~ +6 dB variable at 100Hz |
Crossover frequency: |
3kHz |
LF - Amplifier Power: |
50W |
HF - Amplifier Power |
30W |
Signal HF / LF: |
90dB / 95dB |
THD + N @ Rated Power HF / LF: |
0.02% / 0.05% |
Inputs: |
XLR/TRS - Neutrik® Combo-jack, RCA input, S/PDIF - RCA input for digital signal |
Outputs: |
S / PDIF - RCA jack for digital signal thru |
Input Select: |
Analog or Digital |
Channel selection: |
Left or Right (Digital input mode only) |
Input Impedance: |
20 kOhm balanced, 10 kOhm unbalanced |
Input Sensitivity: |
+4 dBu (Balanced), -10dBV (unbalanced) |

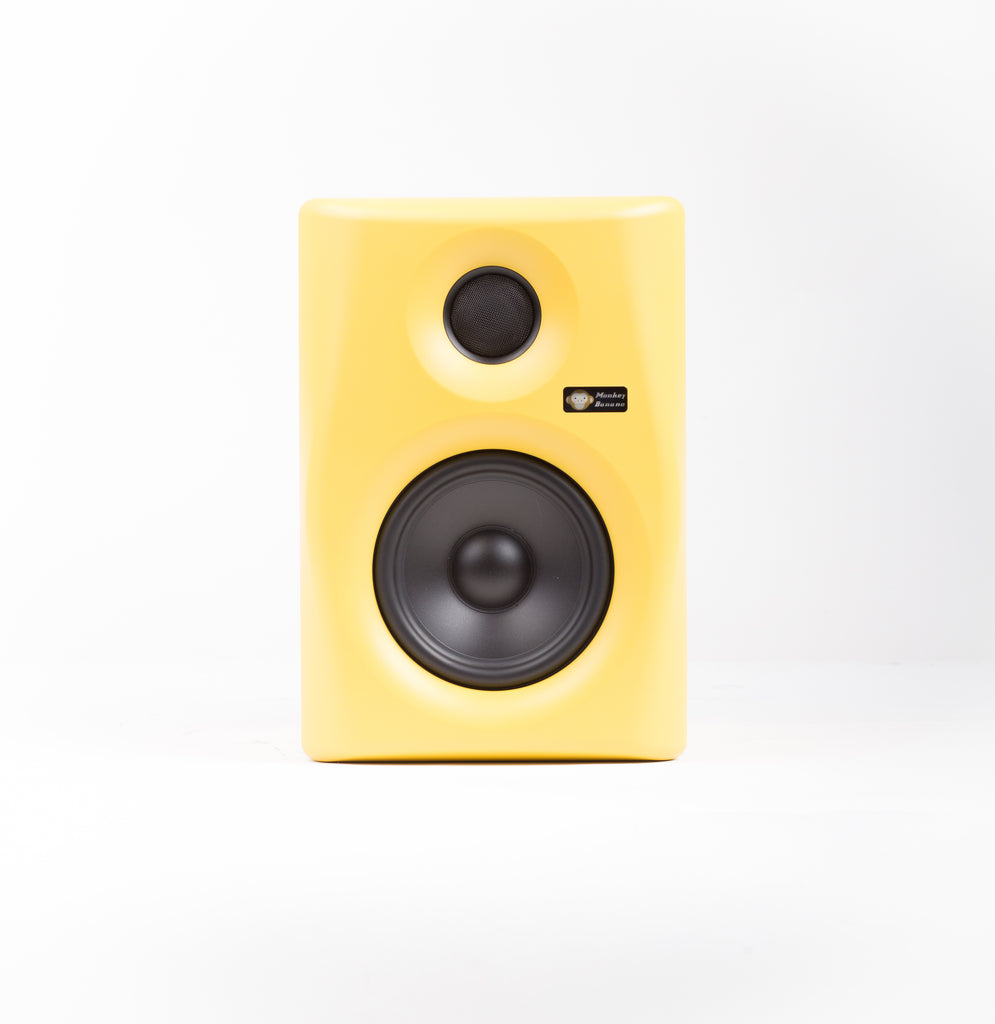

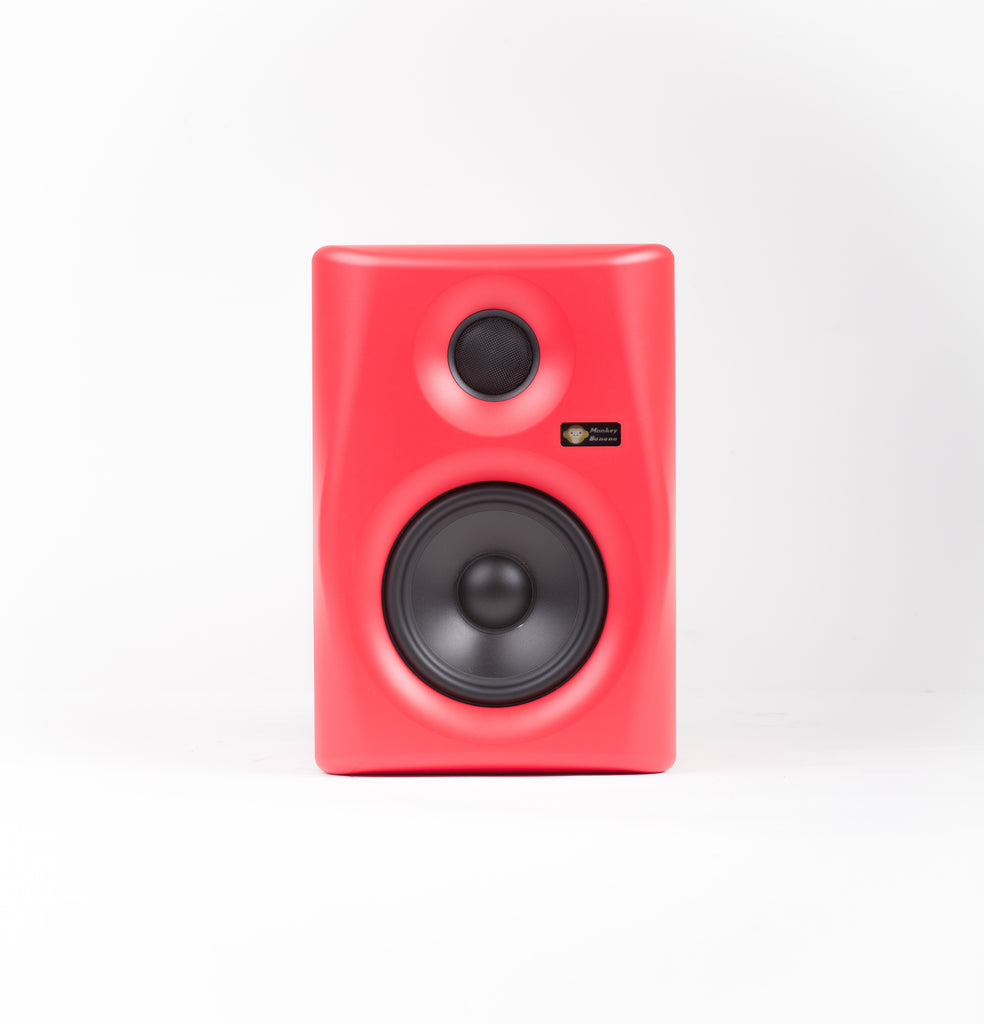

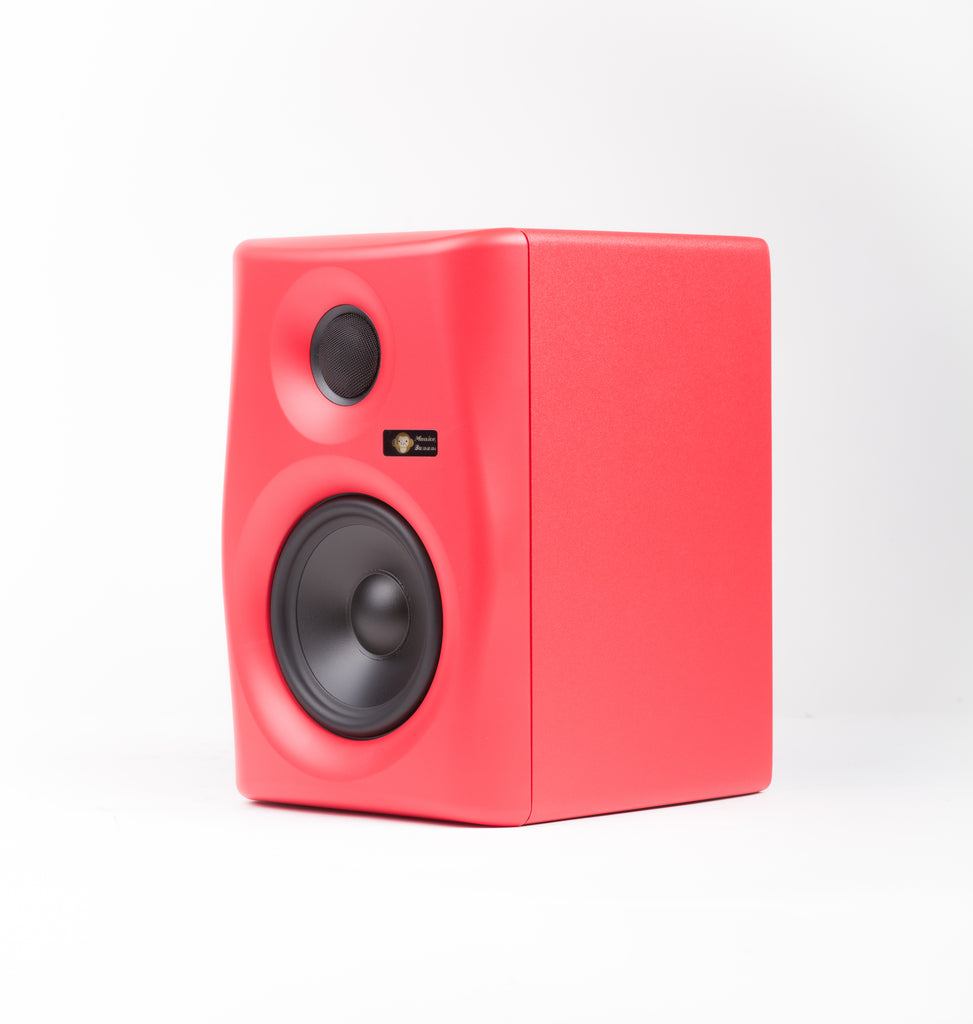

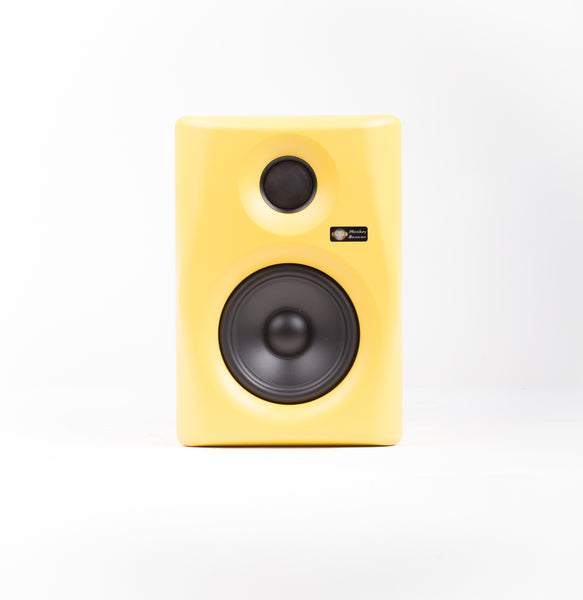

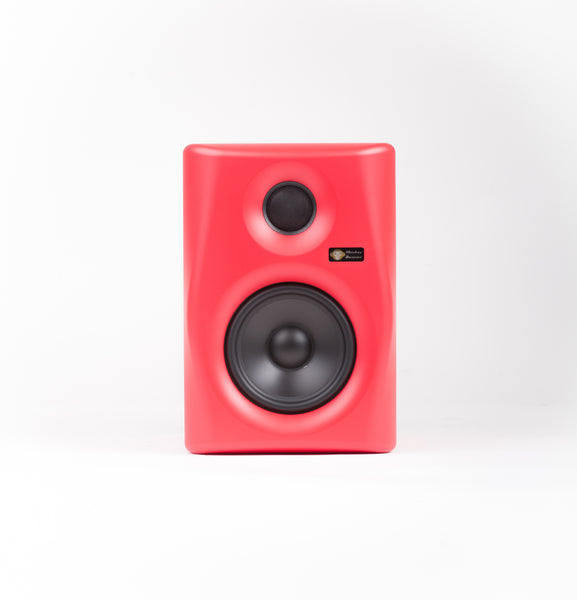

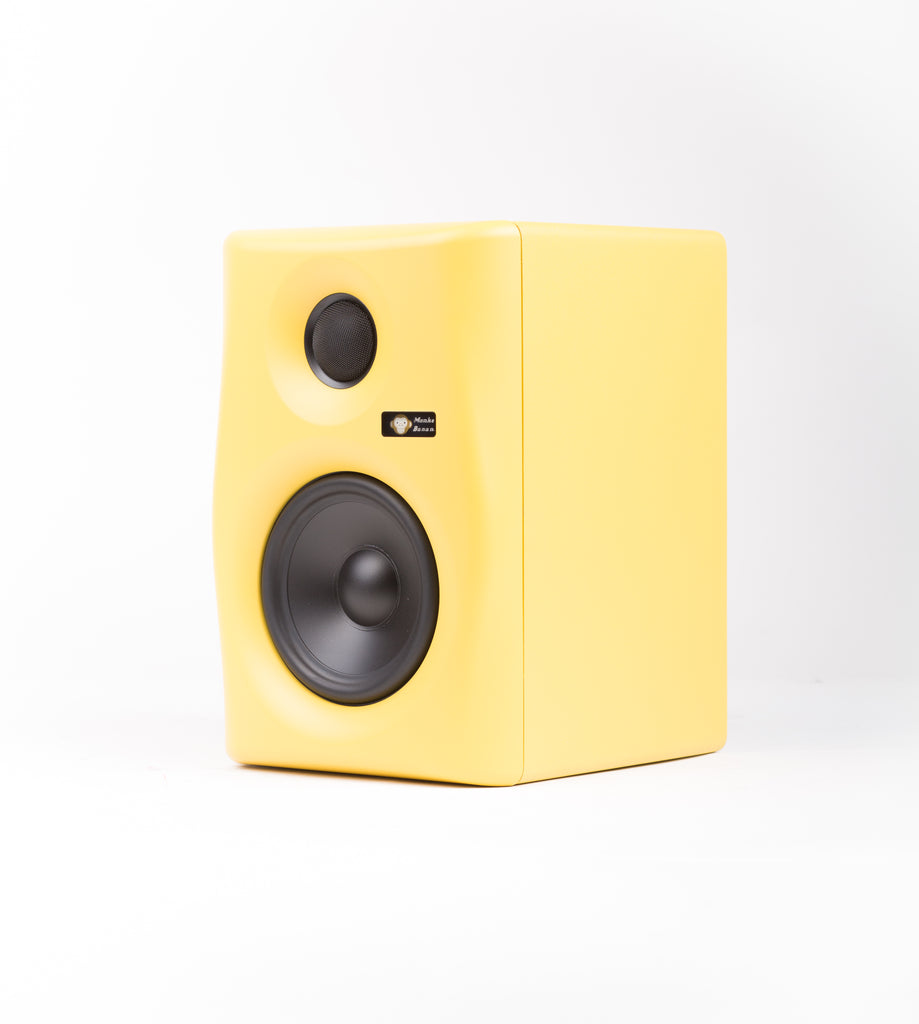

Available colors: |
Red, Black, Yellow |
Gross Weight: |
7.5 kg / 16.6lb |
Net weight: |
5.9 kg / 13lb |
Gross Dimensions: |
L320 x W287 x H389 mm |
Net Dimensions: |
L222 x W192 x H275 mm |
