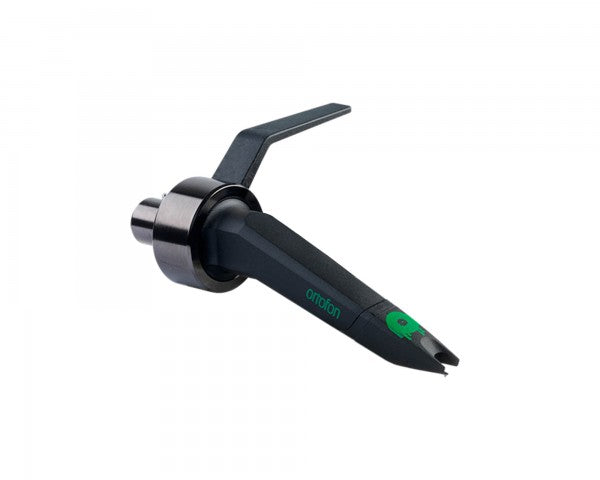

Ortofon Concorde MkII MIX (Black) Arm-Mount Cartridge
Concorde

Ortofon Concorde MkII MIX (Black) Arm-Mount Cartridge

  • Label: Cartridges
  • Label: Ortofon
  • Cat No: ORTCM
Regular price £84.00

Concorde MkII MIX (Black) Arm-Mount Cartridge

The MIX is a general-purpose model for scratch and back-cueing. It provides great performance and durability. It has a good quality spherical stylus, a solid cantilever, and serves general purposes well.

The MIX offers both reasonable output, high sound quality and a good tracking ability for virtually any style of music. With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.

Main Features

  • Concorde MkII MIX
  • Provides great performance and durability
  • Spherical stylus
  • Excellent groove handling
  • Solid cantilever outstanding rigidity
  • Cartridge weight 18.5g

Product Specifications

General

  • Output voltage at 1000Hz, 5cm/sec.: 6 mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1kHz: 20 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-20.000 Hz
  • Tracking ability at 315 Hz at recommended tracking force: 100 μm
  • Compliance, dynamic lateral: 14 μm/m N
  • Stylus type: Spherical R 18 μm
  • Tracking force range: 2 - 4g
  • Tracking force recommended: 3g

Physical & Dimensions

  • Cartridge weight: 18.5g
