Ortofon Concorde MkII DJ (Blue/Orange) Arm-Mount Cartridge
Ortofon

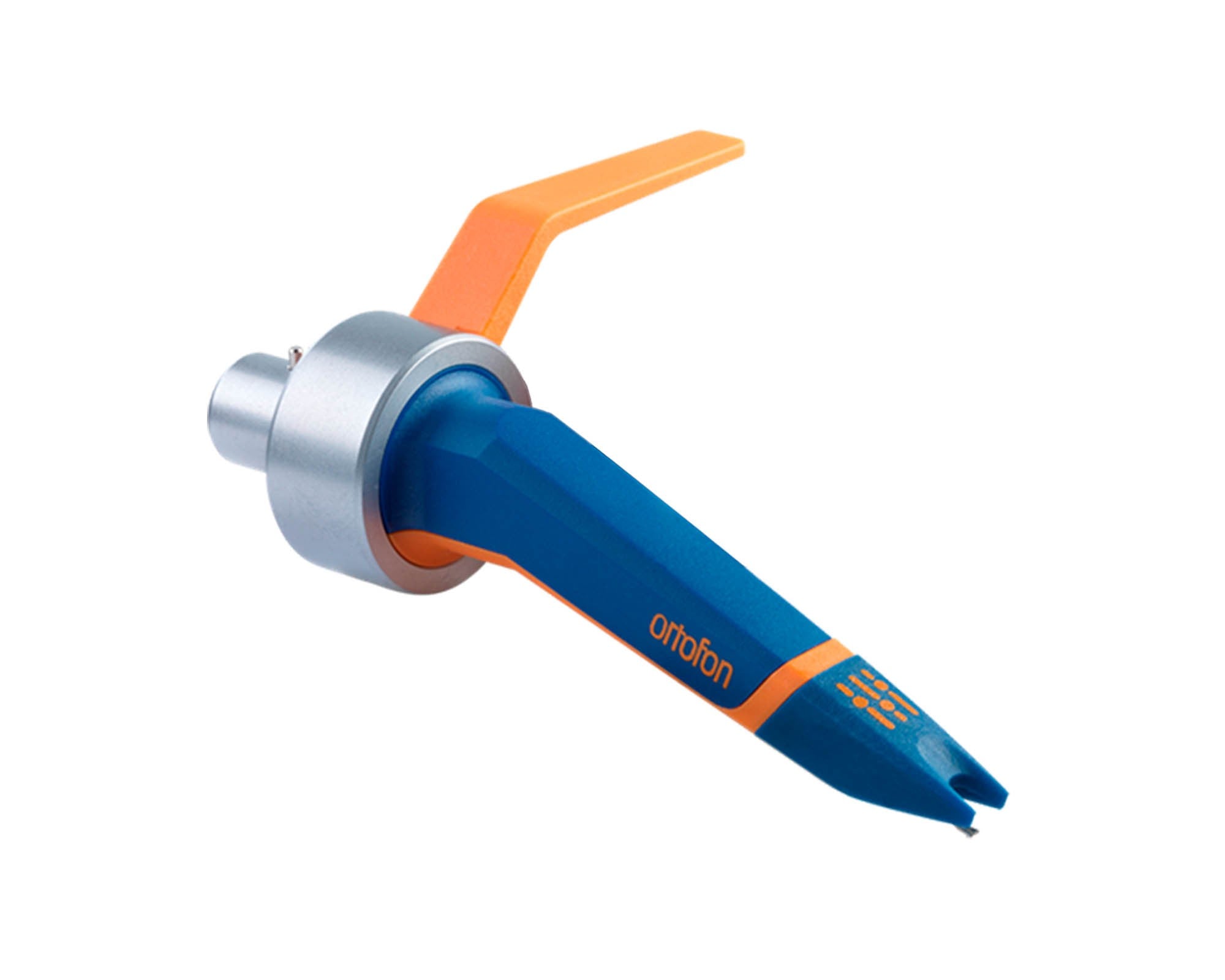

Ortofon Concorde MkII DJ (Blue/Orange) Arm-Mount Cartridge

  • Label: Cartridges
  • Label: Concorde
  • Cat No: ORTCDJ
Regular price £99.99

Concorde MkII DJ (Blue/Orange) Arm-Mount Cartridge

The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling.  It has a spherical stylus and an extremely balanced cantilever that provides outstanding rigidity. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

Main Features

  • Concorde MkII DJ
  • Fine spherical stylus design for low record wear
  • Excellent groove handling
  • Extremely balanced cantilever provides outstanding rigidity
  • Very low record wear
  • Blue and orange finish

Product Specifications

General

  • Output voltage at 1000Hz, 5cm/sec.: 6 mV
  • Channel balance at 1kHz: 1 dB
  • Channel separation at 1kHz: 22 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-20.000 Hz
  • Tracking ability at 315 Hz at recommended tracking force: 100 μm
  • Compliance, dynamic lateral: 14 μm/m N
  • Stylus type: Spherical R 18 μm
  • Tracking force range - 3: 5g
  • Tracking force recommended: 4g

Physical & Dimensions

  • Cartridge weight: 18.5g
